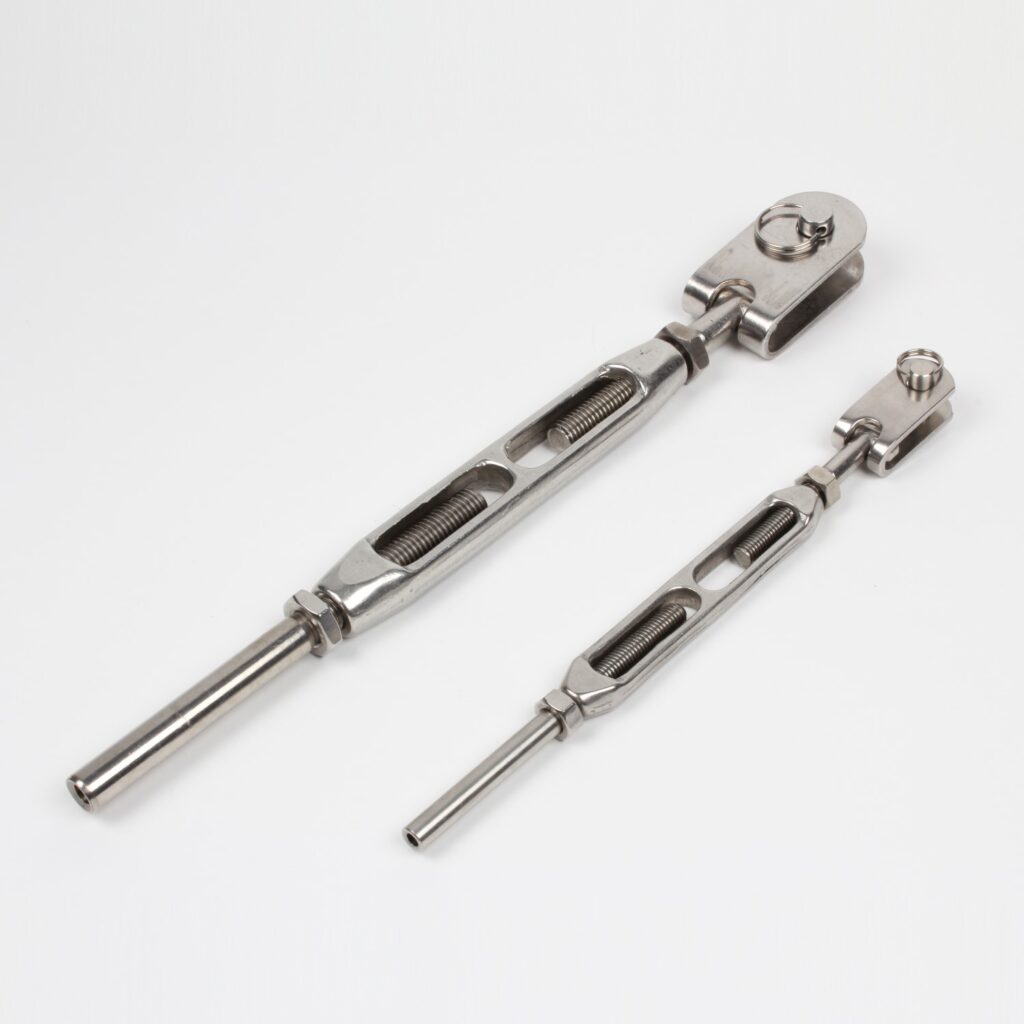

Rigging screws open body and integral toggle – swaging terminal.
| Code | Rope (mm) | D | B (mm) - closed | C (mm) - open |
|---|---|---|---|---|
| 139.06 | 3 | M6 | 150 | 210 |
| 139.08 | 4 | M8 | 180 | 250 |
| 139.10 | 5 | M10 | 215 | 295 |
| 139.12 | 6 | M12 | 240 | 330 |
| 139.13 | 7 | M12 | 240 | 330 |
| 139.14 | 8 | M14 | 270 | 370 |
| 139.16 | 10 | M16 | 320 | 440 |
| 139.18 | 12 | M18 | 350 | 490 |
